Advancing Terahertz Technology: On-Chip Beamforming Paves the Way for Terabit-Per-Second Wireless Networks

Advancing Terahertz Technology: On-Chip Beamforming Paves the Way for Terabit-Per-Second Wireless Networks
Image credit: IEEE Spectrum

Introduction to Terahertz Waves

Terahertz waves, which occupy the frequency range between 0.1 and 10 terahertz, are situated between optical waves and microwaves on the electromagnetic spectrum. These relatively untapped frequencies hold the key to unlocking the higher bandwidth necessary for future 6G wireless networks and beyond. As Ranjan Singh, a professor of electrical engineering at the University of Notre Dame and Nanyang Technological University, highlights, terabit links could revolutionize a variety of applications, from faster Internet connections to smart cities and ultra-high-definition video streaming.

The Potential of Terabit Links

Terabit-per-second data rates enabled by terahertz waves could support a wide range of next-generation technologies. These include autonomous vehicles, virtual and augmented reality without lags, remote surgeries, and even 8K or 18K video streaming. The ability to transmit such massive amounts of data quickly and efficiently would transform how we interact with digital content and smart technologies.

Challenges in Terahertz Wireless Communication

One of the primary obstacles in realizing the potential of terahertz waves is the need for efficient beamforming techniques. Beamformers are advanced antennas that focus a wireless signal in a specific direction, enhancing both range and quality by reducing interference and concentrating the signal where it's needed. However, existing terahertz beamformers are limited by issues such as power consumption, bandwidth restrictions, and bulky designs.

Innovations in Terahertz Beamforming

Singh and his research team have developed an on-chip, multi-link broadband terahertz beamformer capable of emitting a wireless beam in any direction. This innovative device utilizes the emerging field of topological photonics to overcome many of the challenges faced by current beamformers. By leveraging insights from topology—the mathematical study of shapes and spaces that remain unchanged through deformation—the researchers created a compact, efficient beamformer that can direct terahertz waves with minimal power loss.

The Role of Topology in Beamforming

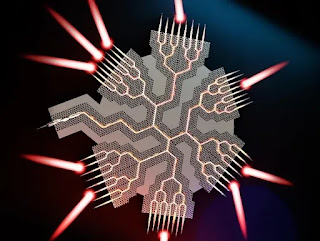

The researchers designed a silicon chip perforated with rows of triangular holes, arranged in clusters that alternated in direction. This design allowed light to travel along the edges between different clusters, topologically protected from scattering or losses even through sharp turns and tight spaces. The result was a miniaturized beamformer that could fit entirely within the chip, significantly reducing the device's size and power consumption.

Breakthrough Performance and Future Prospects

This new topological beamformer demonstrated the ability to enable a 72-Gbps chip-to-chip wireless link over 30 centimeters with low power losses. Remarkably, this chip could adjust the number of channels it supports by using light to activate or deactivate any of its 48 beams. For context, while current Wi-Fi speeds require 11 minutes to download a 4K UHD video, Singh’s terahertz beamformer chip could accomplish the same task in just 6 seconds.

Future Directions and Challenges

Singh is now focused on integrating terahertz electronics and photonics onto a single chip platform. However, one of the significant challenges is the current lack of efficient power amplifiers and electronic oscillators at terahertz frequencies, which limits the power generation capabilities of these chips. Future research will need to prioritize the miniaturization of both electronic and photonic components to achieve the necessary power levels for commercial viability.

Conclusion

The development of an on-chip terahertz beamformer represents a significant advancement in the pursuit of terabit-per-second wireless networks. By addressing the challenges associated with terahertz communication, this technology could pave the way for faster, more reliable wireless connections that support a new generation of digital applications.
